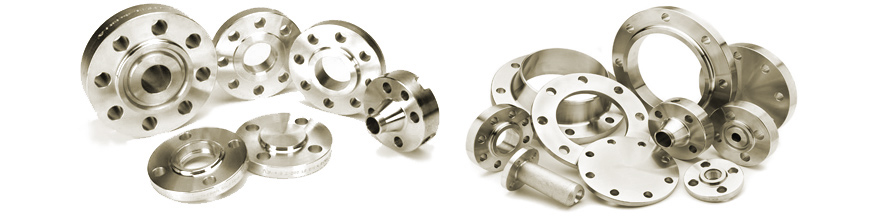

STAINLESS STEEL FLANGES
Type
- Forged: Blind, Slip-On, Welding Neck, Socket-Weld, Lap Joint, Threaded, Orifice, Spectacle
- Plate: Blind, Slip-On, Lap Joint, Spectacle
- Face Types: Flat Faced (FF), Raised Faced (RF), Ring Type Joint (RTJ)
Grade
- Stainless 304
- Stainless 304L
- Stainless 316
- Stainless 316L
Specification
- ASTM A182
Standard
- ASME/ANSI B16.5, B16.47 Series A, B16.47 Series B, B16.36
- BS10 Table D, E, F, H
- BS EN 1092
Dimension
Sizes:
- B16.5: 1/2” – 24”
- B16.47 Series A (MSS SP 44): 26” – 60”
- B16.47 Series B (API 605): 26” – 60”
- B16.36: 1” – 24”
Pressure Class (Lbs):
- B16.5: 150, 300, 400, 600, 900, 1500, 2500
- B16.47 Series A (MSS SP 44): 150, 300, 400, 600, 900
- B16.47 Series B (API 605): 75, 150, 300, 400, 600, 900
- B16.36: 300, 400, 600, 900, 1500, 2500
- BS EN 1092: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Make / Origin
This section will be updated soon.
